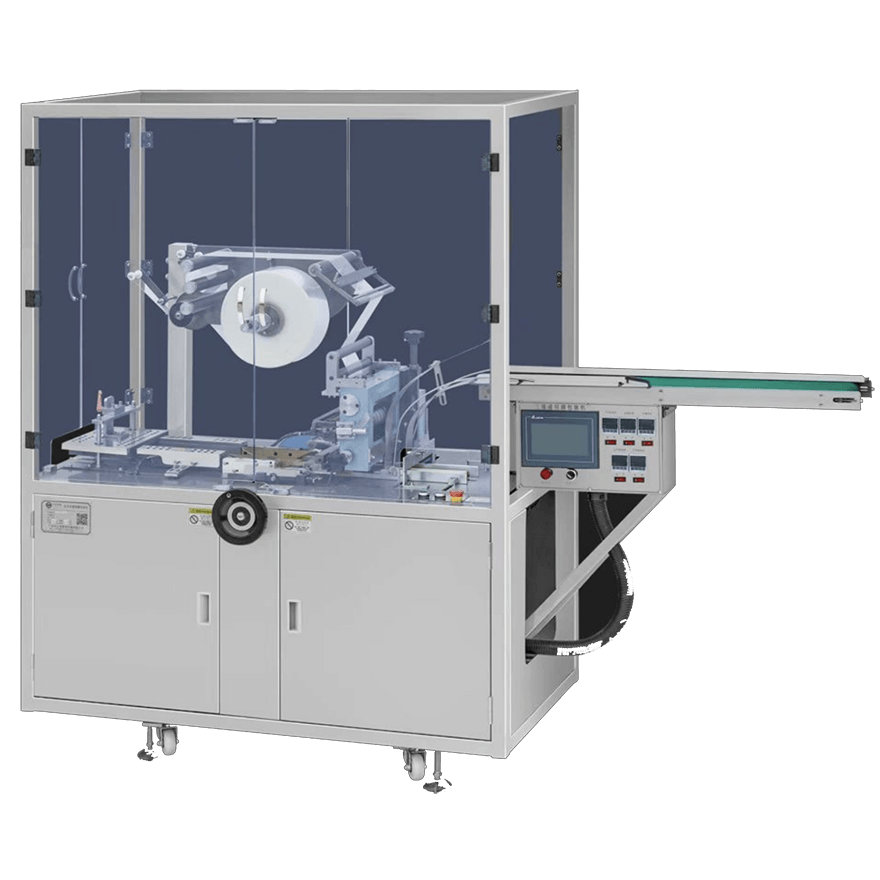

200 Fully automatic transparent film packaging machine JBL-200

This machine has a wide range of adaptability to packaging size specifications and is widely used in industries such as health products, food, cosmetics and pharmaceuticals.

The inner packaging, box outer packaging, or three-dimensional packaging with transparent film for various square shaped items in China.

Ask for quote

Video

Specs

Packing speed 25-55 boxes per minute
Packing specifications (50-270)mm*(40-180)mm*(20-80)mm, note: the maximum value cannot be taken simultaneously
Box material BOPP
Box material requirements Inner hole diameter: 75mm, thickness: 0.018-0.040mm
Heat sealing temperature 100-150℃
Working air pressure 0.4-0.6MPa
Power supply 220V/380V 150HZ
Total Power 11KW
Comprehensive noise <59dB
Overall size L3000*W1100*H1850mm
Machine weight 900kg
Packed size 3260*1160*2080mm
Volume 1311kg

Application

Electronic cigarettes, stationery industry, electronic products industry, daily necessities industry, printing industry, health care products industry
