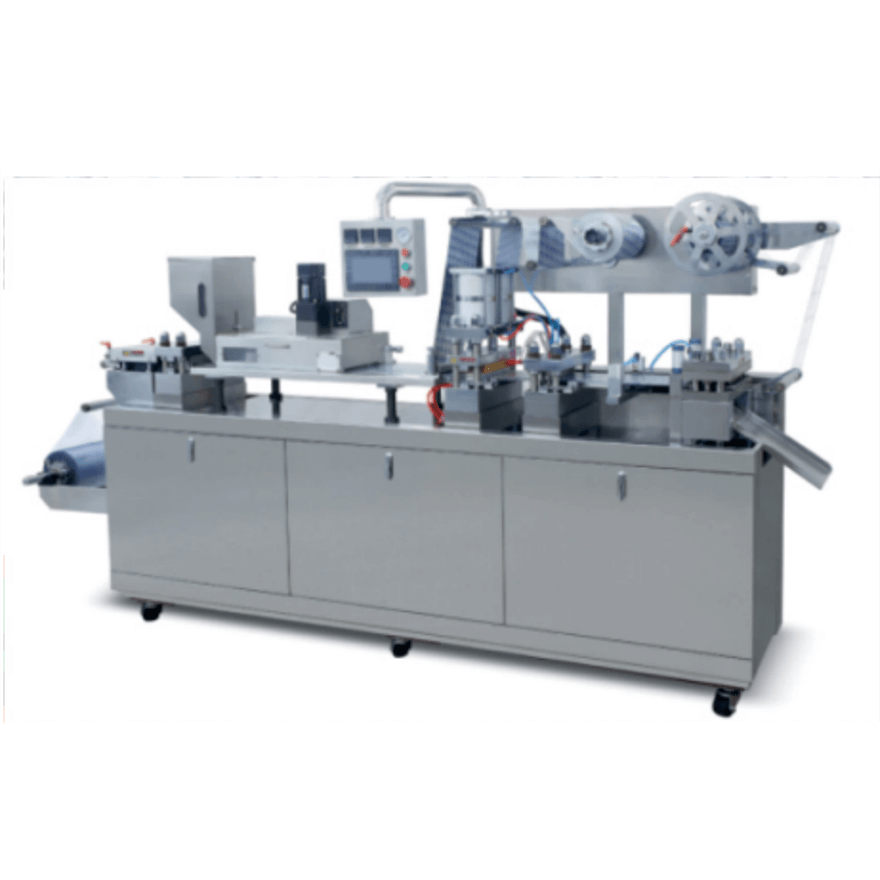

260 Flat blister packaging machine JBL-260

1. The traction uses servo motor drive technology (precision screw traction, rubber pressure roller traction), accurate synchronization, and the travel length can be freely set by the human-machine interface.

2. Configure the cursor to match the plate sealing device, making the plate pattern consistent, clear and pleasing to the eye.

3. Set up four workstations – forming, heat sealing, indentation, punching, etc.- all with the same spline central axis positioning, each workstation can move independently, making calibration convenient.

Ask for quote

Video

Specs

Punching frequency (times/minute) 12-50
Maximum forming area and depth (millimeters) 240*150*26 (standard: 240*150*14)
Current source 40-160 (can grow to 180mm according to user requirements)
Pressure 0.4-0.7
Air flow rate ≥0.35m³/min
Total power of power supply 380V/220V 50Hz 6.2kw
External dimensions (millimeters) 3000*730*1600mm
Total weight 1600kg
Packed size 3060*790*1780mm
Volume 718kg

Application

Electronic cigarette industry, as well as food industry, daily chemical industry, electronic products industry, cosmetics industry, pharmaceutical industry
